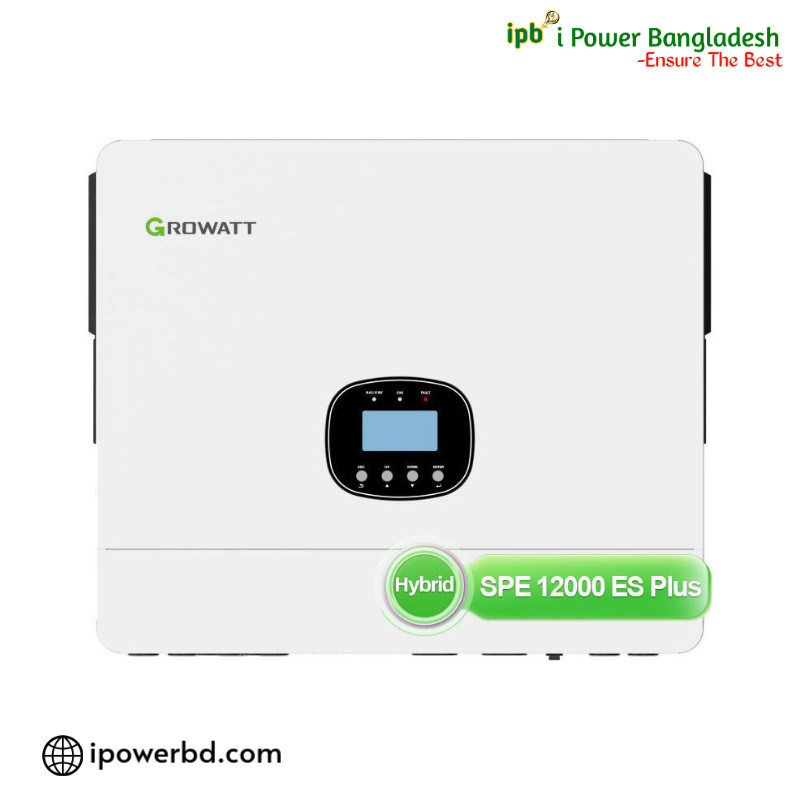

Growatt 12KW Hybrid Solar Inverter Growatt 12KW Hybrid Solar Inverter Growatt 12KW Hybrid Solar Inverter
Growatt 12KW Hybrid Solar Inverter Growatt 12KW Hybrid Solar Inverter
Growatt 12KW Hybrid Solar Inverter

Growatt 12KW Hybrid Solar Inverter

৳160,000.00 ৳130,000.00
  • Brand : Growatt
  • Model : SPE 12000 ES
  • Capacity : 12000Watt
  • System Voltage : 48VDC
  • Solar Use : Max 15000Watt
  • Wave Form : Pure Sinewave Inverter
  • Charge Controller : MPPT 150AH×2P
  • Color : As given picture
  • Made In : China
  • Warranty : 2 Years
  • Category : Hybrid Solar Inverter

For more live images and videos, Contact us now

Share on WhatsApp
01779966833

The lowest price of Growatt 12KW Hybrid Solar Inverter in Bangladesh. Buy from Dhaka at low price in i Power Bangladesh. Growatt 12KW Hybrid Solar Inverter Price in Bangladesh.

Authenticity Guaranteed
1-5 Year Warranty
Brand New
7 Days Exchange Policy

Description

  • DatasheetSPE 8000 ESSPE 10000 ESSPE 12000 ES
    Input data (DC)
    Max. recommended PV power(for module STC)10000W12500W15000W
    Max. DC voltage550V
    Start voltage120V
    MPP voltage range60V-480V
    No. of MPP trackers2
    No. of PV strings per MPP tracker1
    Max. input current per MPP tracker27A
    Output data (AC)
    AC nominal power8000W10000W12000W
    Max. AC apparent power8000VA10000VA12000VA
    Nominal AC voltage230V
    AC grid frequency50/60Hz
    Output current34.8A43.5A52.2A
    Adjustable power factor0.8leading…0.8lagging
    THDi< 5%
    Max. conversion efficiency (PV/AC)96.5%
    European efficiency @ vnominal (PV/AC)95.5%
    Battery data (DC)
    Nominal DC voltage48V
    Max charging and discharging current190A/200A220A/240A250A/280A
    Type of batteryLithium/Lead-acid
    Backup power (AC)
    AC nominal output power8000W10000W12000W
    Nominal AC output voltage230V
    Nominal AC output frequency50/60Hz
    Switch time<20ms@Single, <30ms@Parallel
    Efficiency
    Peak. efficiency96.5%
    European efficiency95.5%
    General data
    Dimensions (W / H / D)550/465/150mm
    Weight21.5kg
    Operating temperature range-10°C … +50°C
    Noise emission (typical)<75dB
    Self-consumption< 75W
    TopologyTranformerless
    CoolingDC fan
    Protection degreeIP20
    Relative humidity5%~95% non-condensing
    Altitude<2000m
    CommunicationWiFi/4G
