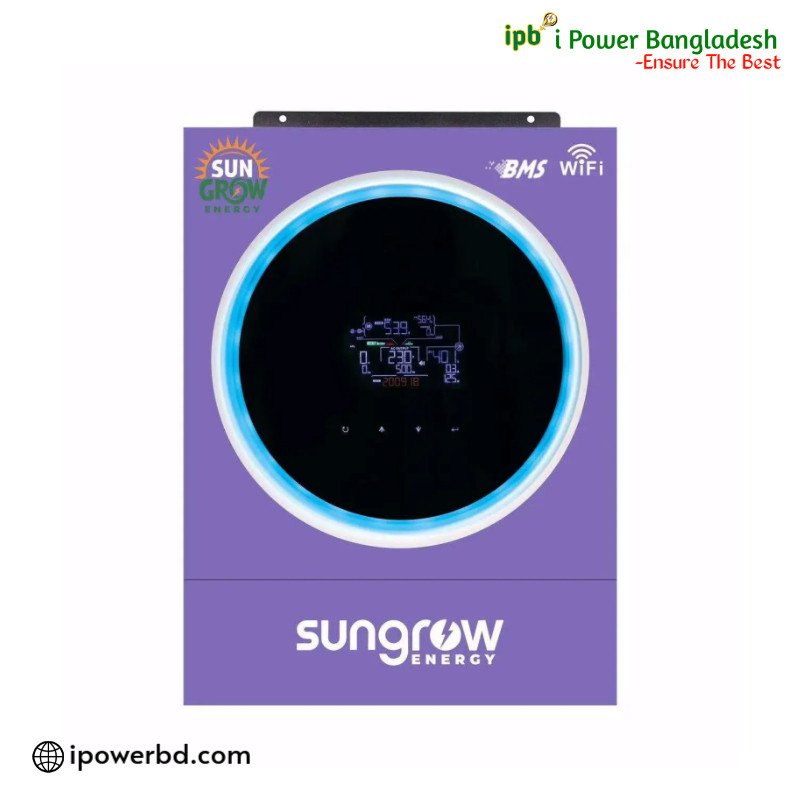

SunGrow Energy Solar Inverter 4KW

৳55,000.00 ৳40,000.00

Brand : SunGrow Energy
Model : Axpert VM 4 TWIN 4K
Capacity : 4000Watt
System Voltage : 24VDC
Solar Use : Max 5000Watt
Wave Form : Pure Sinewave Inverter
Charge Controller : MPPT 120AH
Color : As given picture
Made In : China
Warranty : 2 Years
Category : Hybrid Solar Inverter
Easy EMI Plans Available - Learn More

For more live images and videos, Contact us now

Share on WhatsApp

01996677558

For Update Price Call: +8801996-677558

Authenticity Guaranteed

1-5 Year Warranty

Brand New

7 Days Exchange Policy

Description

Axpert VM IV TWIN 4K

Products Description

* Dual output for smart load management
* Maximum PV input current 27A
* Wide PV input voltage range 60VDC~450VDC
* Customizable status LED ring with RGB lights
* Touchable button with large 4.3" colored LCD
* Built-in Wifi for mobile monitoring (Android/iOS App available)
* Supports USB On-the-Go function
* Data log event stored in the inverter
* Reserved communication port (RS485, CAN-BUS or RS232) for BMS
* Battery independent design
* Battery equalization extends lifecycle
* Enhanced charging power
* Built-in anti-dust kit

Product Paramenters

Model	Axpert VM 4 TWIN 4K	Axpert VM 4 TWIN 6K
Rated Power	4000VA/4000W	6000VA/6000W
INPUT
Voltage	230 VAC	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 10%	230VAC ± 10%
Efficiency (Peak)	90% ~ 93%	90% ~ 93%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)	15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave	Pure sine wave
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT	MPPT
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	60 ~ 450 VDC	60 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500VDC	500VDC
Maximum PV Input Current	27A	27A
Maxmum Solar Charge Current	120A	120A
Maximum AC Charge Current	100A	100A
Maximum Charge Current	120A	120A
PHYSICAL Dimension
Dimension, D x W x H (mm)	119 x 313.6 x 457.5	119 x 313.6 x 457.5
Net Weight (kgs)	10	12
Communication Interface	USB/RS232/RS485/WiFi/Dry-contact	USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C	-10°C to 50°C
Storage Temperature	-15°C to 60°C	-15°C to 60°C
